Description :

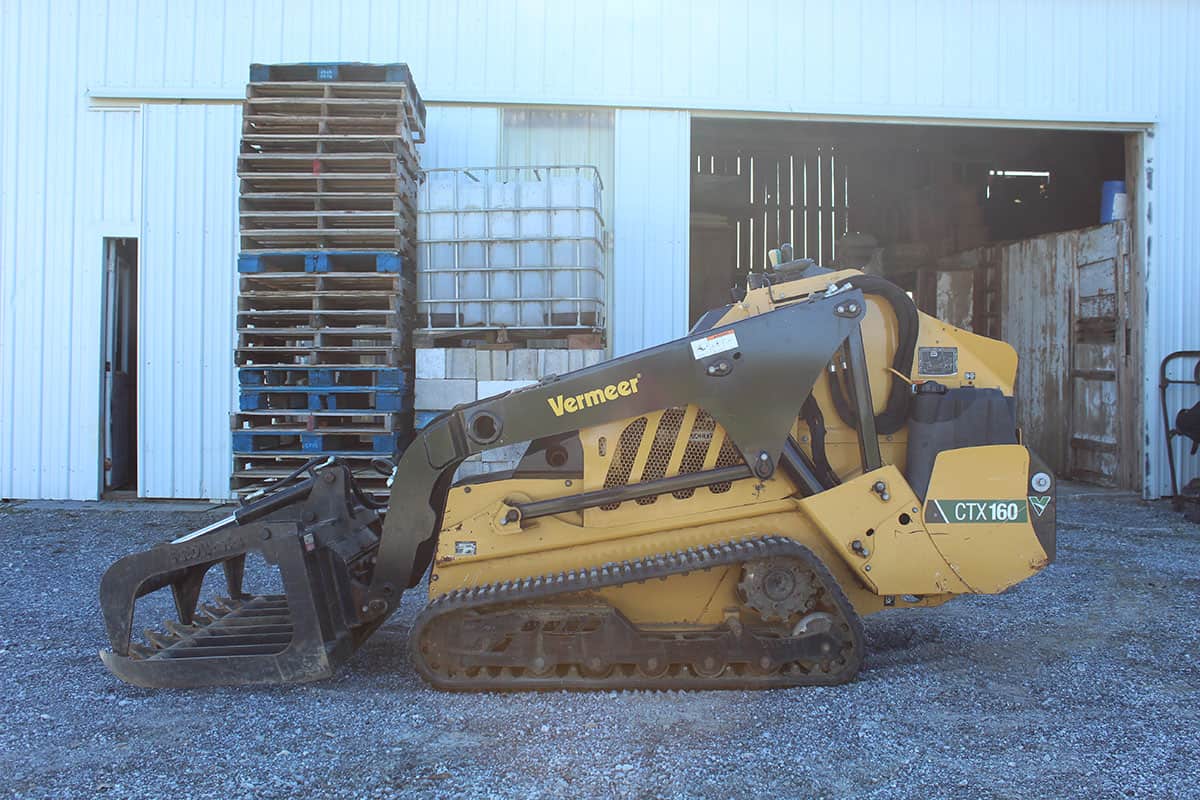

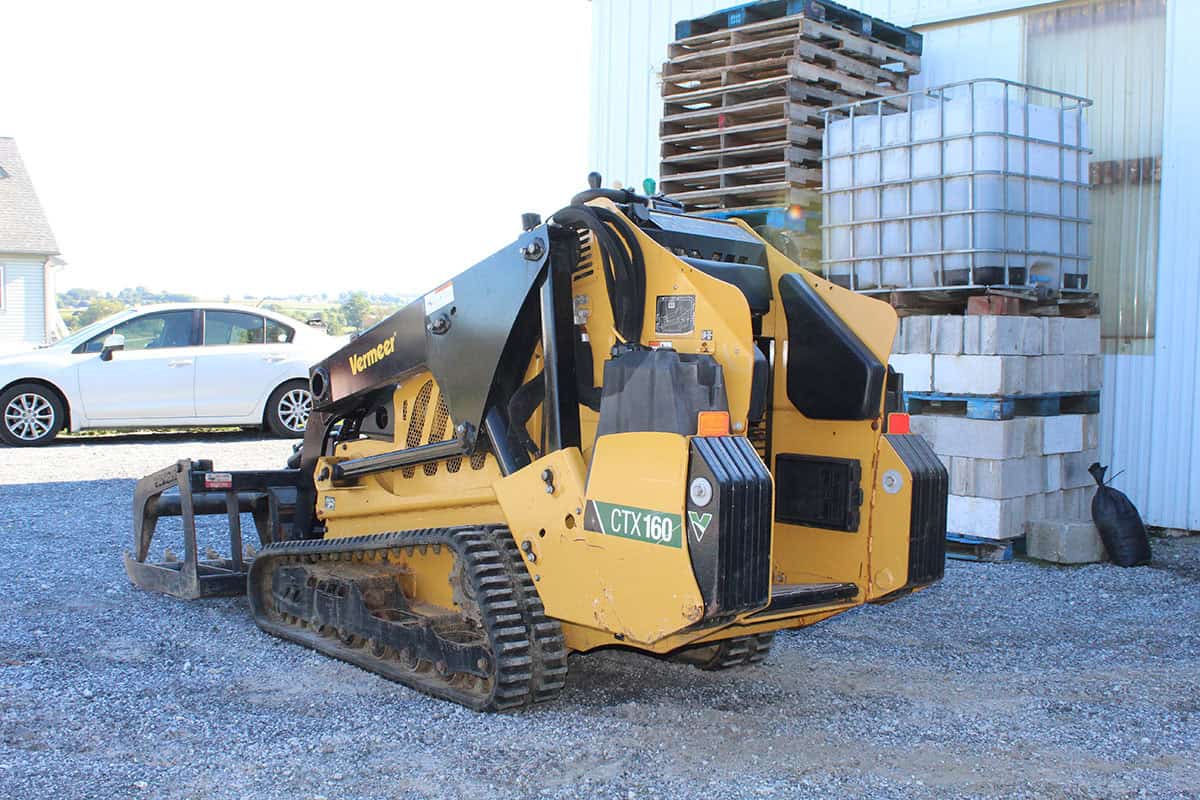

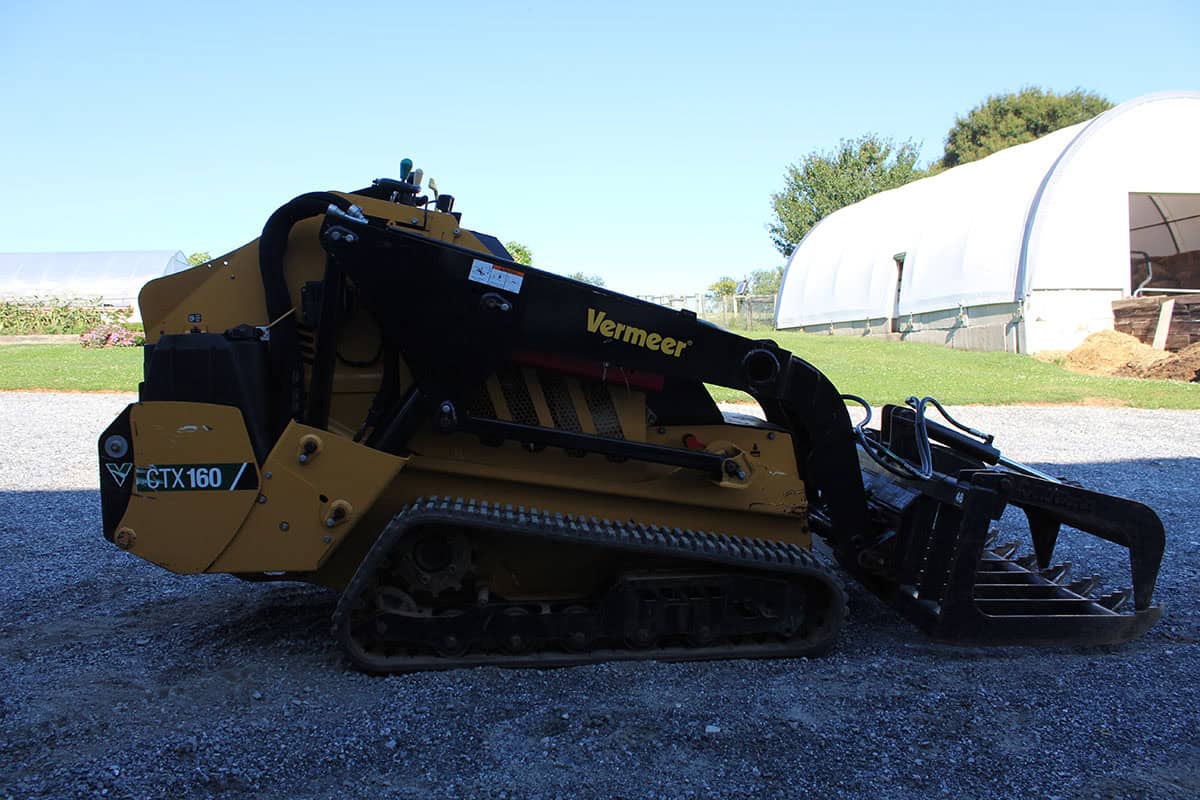

• Available in Ronks, Pennsylvania, this 2021 Vermeer CTX160 mini skid steer for sale has just 765 reported hours and is priced at $35,000. Built as a high-capacity stand-on compact utility loader, the CTX160 combines a manufacturer-rated 1,600 lb operating capacity, a 40-horsepower Kohler diesel engine, rubber-track undercarriage, and a compact footprint designed for jobs where a conventional skid steer may be too large.
• The seller is also offering a grapple and pallet forks as optional attachments, giving buyers the opportunity to configure the machine for material handling, tree work, landscaping, construction, property maintenance, farm use, and other applications. Exact attachment pricing and terms should be confirmed when inquiring.
• With only 765 reported operating hours, this CTX160 deserves consideration from buyers looking for a larger-capacity mini skid steer without moving into a full-size compact track loader.
• Vermeer CTX160 Mini Skid Steer
• Vermeer introduced the CTX160 as one of the larger-capacity machines in its mini skid steer lineup. Unlike smaller stand-on loaders designed primarily for light landscaping work, the CTX160 was engineered around a 1,600 lb SAE rated operating capacity while maintaining a narrow overall machine width.
• Published Vermeer specifications list the machine at approximately 42 inches wide when equipped with 9-inch tracks, allowing it to maneuver through confined work areas while providing substantially more lifting capacity than many smaller mini skid steers.
• Its stand-on design can be useful for operators who frequently enter and exit the machine throughout the workday. Typical applications include:
• Landscape installation and removal
• Tree and brush work
• Hardscaping
• Material handling
• Pallet movement

• Property cleanup
• Construction support
• Utility work
• Farm and acreage maintenance
• Nursery and greenhouse work
• Soil and mulch handling
• Debris removal
• Loading trucks or trailers

40 HP Kohler Diesel Power

The CTX160 is powered by a Kohler KDI 1903 diesel engine rated by Vermeer at approximately 40 gross horsepower.

That level of power helps separate the CTX160 from smaller mini skid steer platforms and gives the machine the engine capability needed for demanding hydraulic attachments and heavier material-handling applications.

Manufacturer information for the CTX160 identifies the engine as a liquid-cooled diesel configuration. Vermeer also designed this model with a Tier 4 Final emissions system using a DOC-only arrangement rather than a diesel particulate filter.

For contractors and commercial operators, the combination of compact dimensions and a 40-horsepower diesel engine makes the CTX160 a useful machine for jobs where maneuverability matters but additional hydraulic and lifting capability is still needed.

1,600 lb Rated Operating Capacity

One of the main reasons buyers search specifically for a Vermeer CTX160 is its lifting capacity.

Vermeer rates the CTX160 at approximately:

• 1,600 lb SAE rated operating capacity
• 4,571 lb published tipping capacity
• 88.75-inch approximate hinge-pin height

The machine uses a vertical lift path designed to provide useful lifting performance when loading materials into trucks, trailers, dumpsters, spreaders, and other elevated destinations.

For landscaping companies, tree-service operators, construction contractors, farms, and material-handling businesses, that capacity can make the CTX160 considerably more capable than smaller stand-on loaders.

Actual safe lifting capacity depends on the attachment, load position, operating surface, machine configuration, and other operating conditions.

High-Flow and Low-Flow Auxiliary Hydraulics

The CTX160 was designed to run more than just buckets and forks.

Published Vermeer specifications list a dual hydraulic system with approximately:

• 16.7 GPM auxiliary high flow
• 9.4 GPM low flow
• 3,045 PSI hydraulic system pressure

This allows operators to match hydraulic output more appropriately to different attachments.

Compatible attachment types for the CTX160 platform may include buckets, grapples, pallet forks, power rakes, augers, breakers, trenching equipment, soil-working attachments, brooms, blades, and other hydraulically powered tools, provided the attachment is properly matched to the machine.

The actual attachment and hydraulic requirements should always be verified before use.

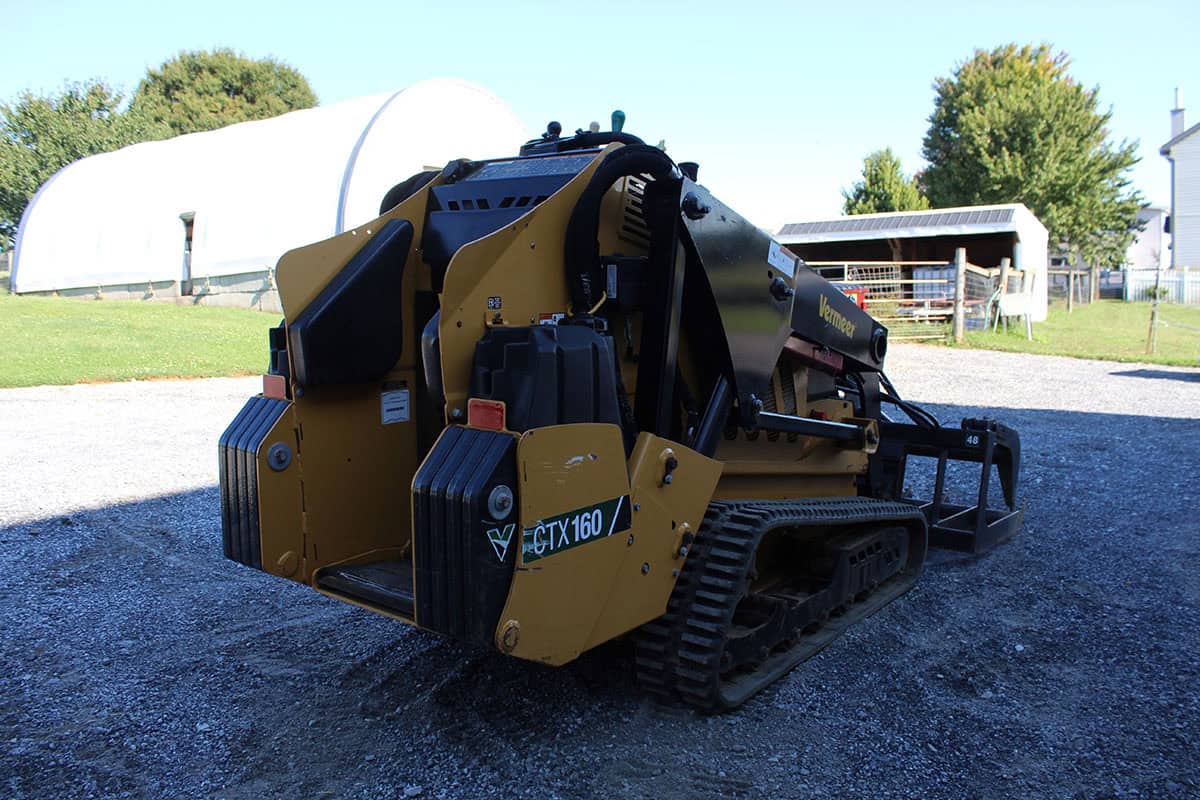

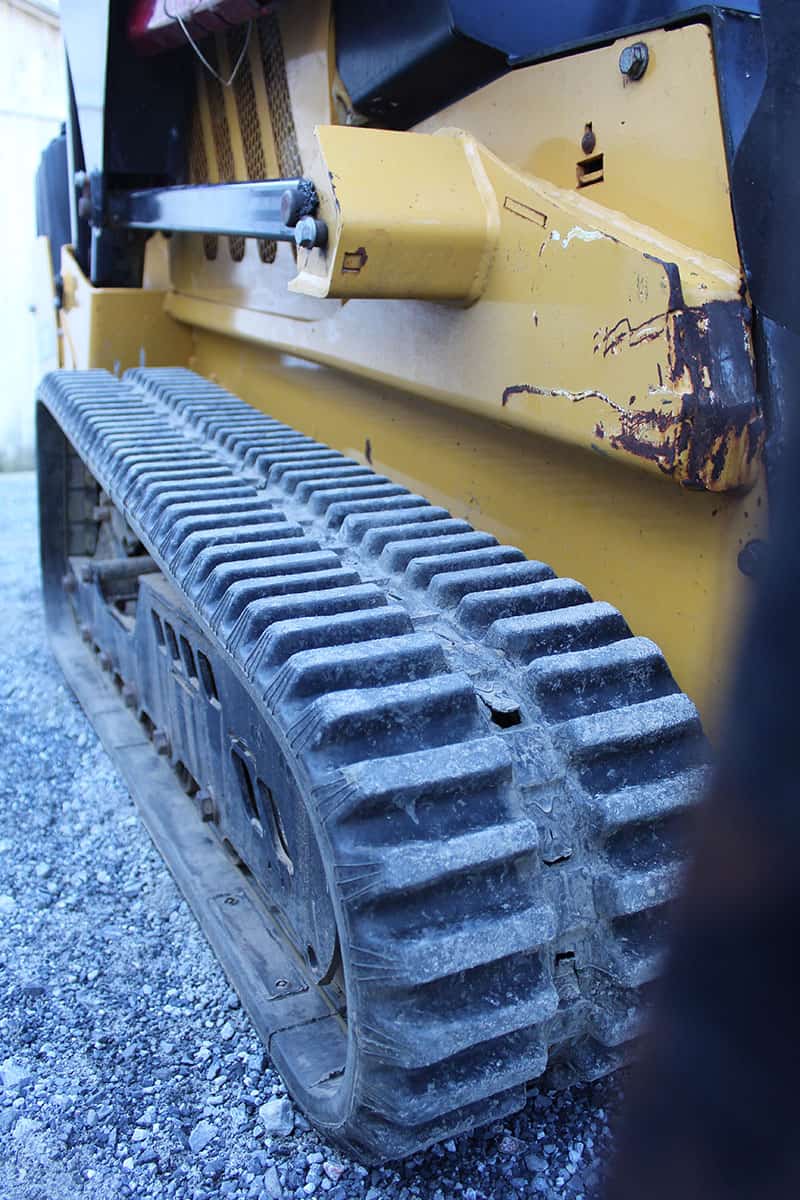

Compact Rubber-Track Undercarriage

The CTX160 rides on a rubber-track undercarriage designed to provide traction while maintaining a relatively compact overall footprint.

Published specifications for a CTX160 equipped with 9-inch tracks include an overall width of approximately 42 inches and ground pressure of approximately 4.7 PSI.

That narrow width can make the machine especially useful for:

• Residential landscaping
• Backyard access
• Confined construction sites
• Barn and farm work
• Tree-service projects
• Fence-line work
• Commercial landscaping
• Property maintenance

The seller provided information regarding the current tracks, but the exact remaining tread percentage should be confirmed before advertising a specific percentage.

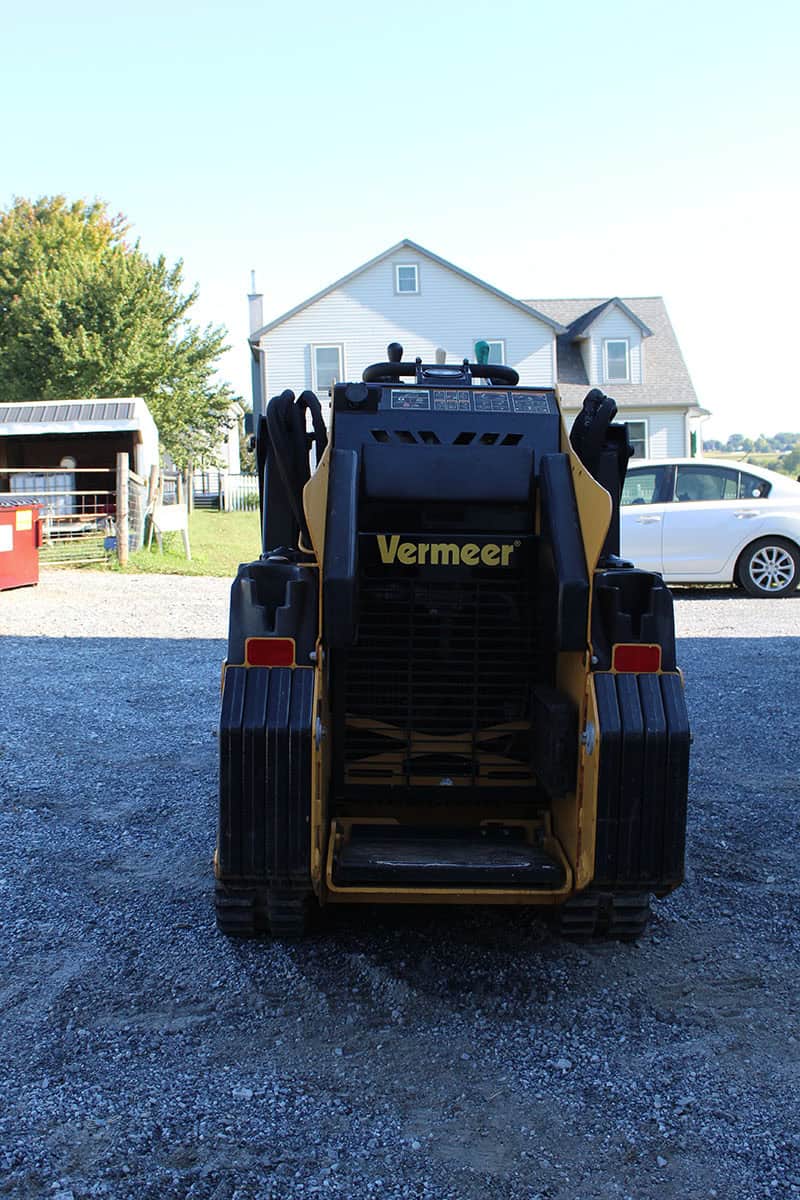

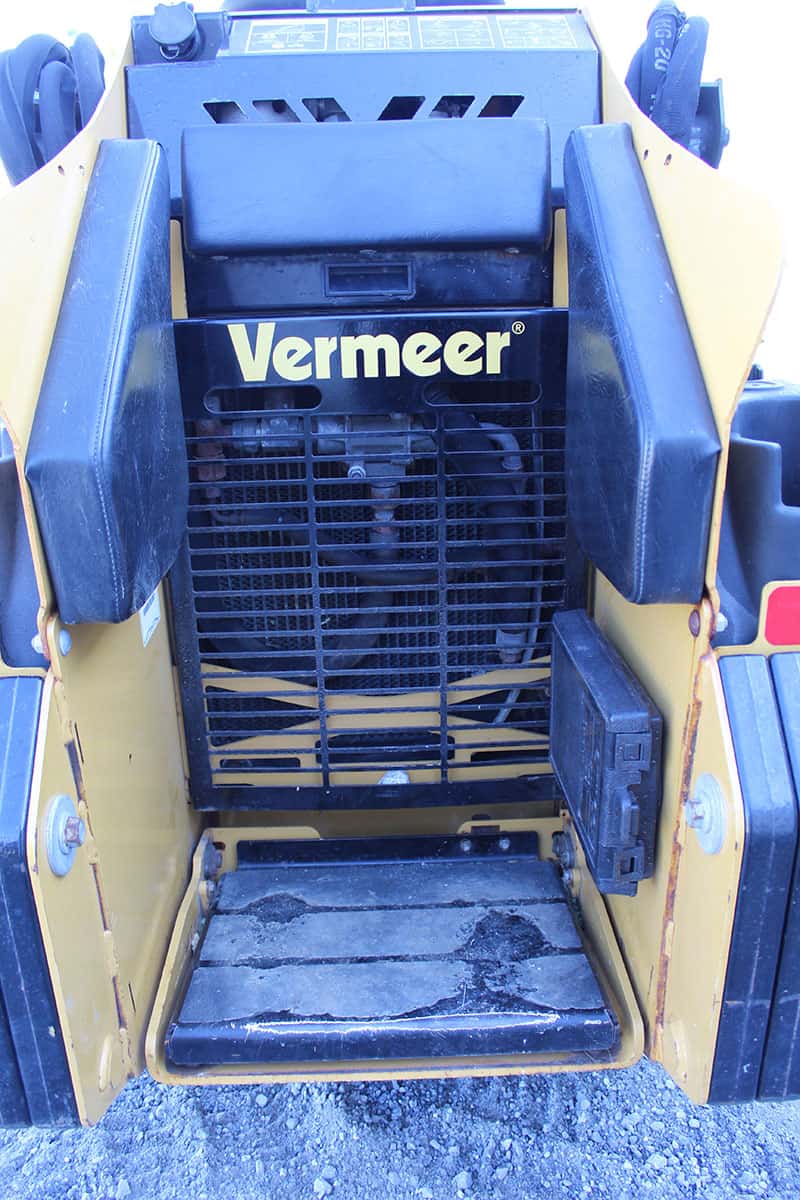

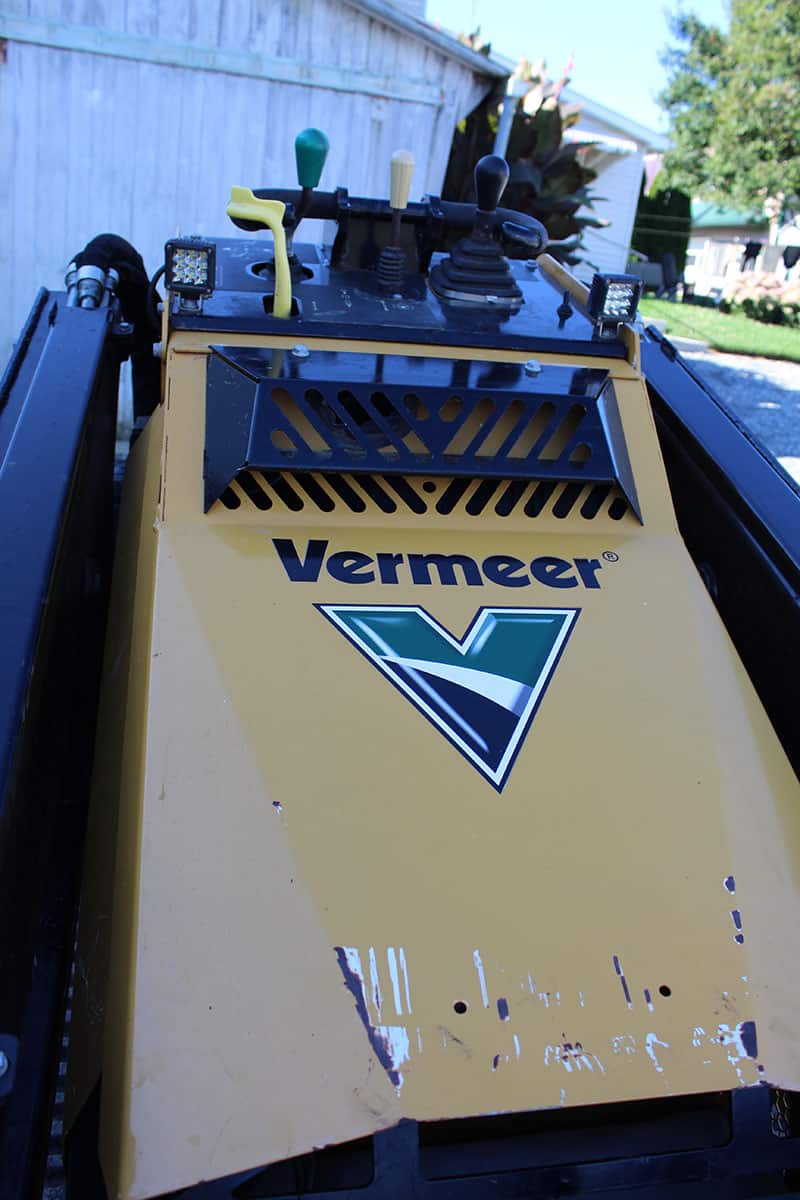

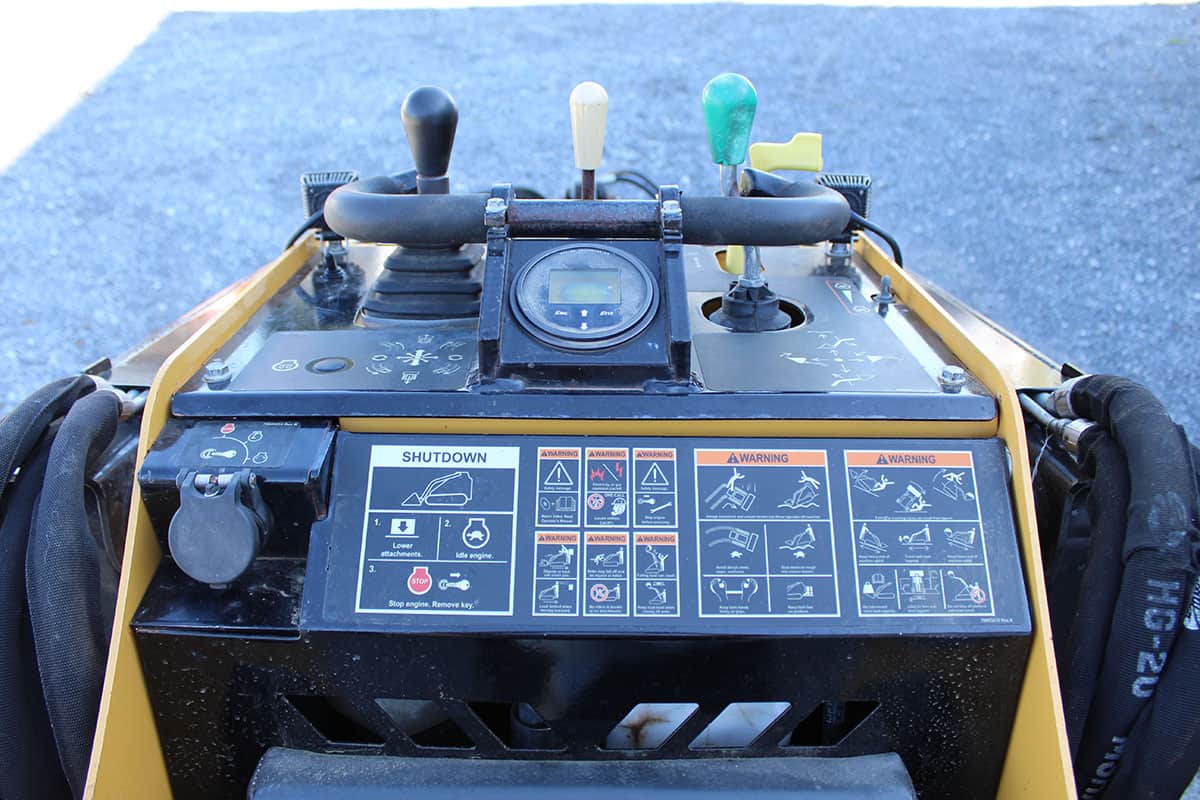

Stand-On Operator Platform and Pilot Controls

The CTX160 uses Vermeer's stand-on operator platform rather than a conventional enclosed skid steer cab.

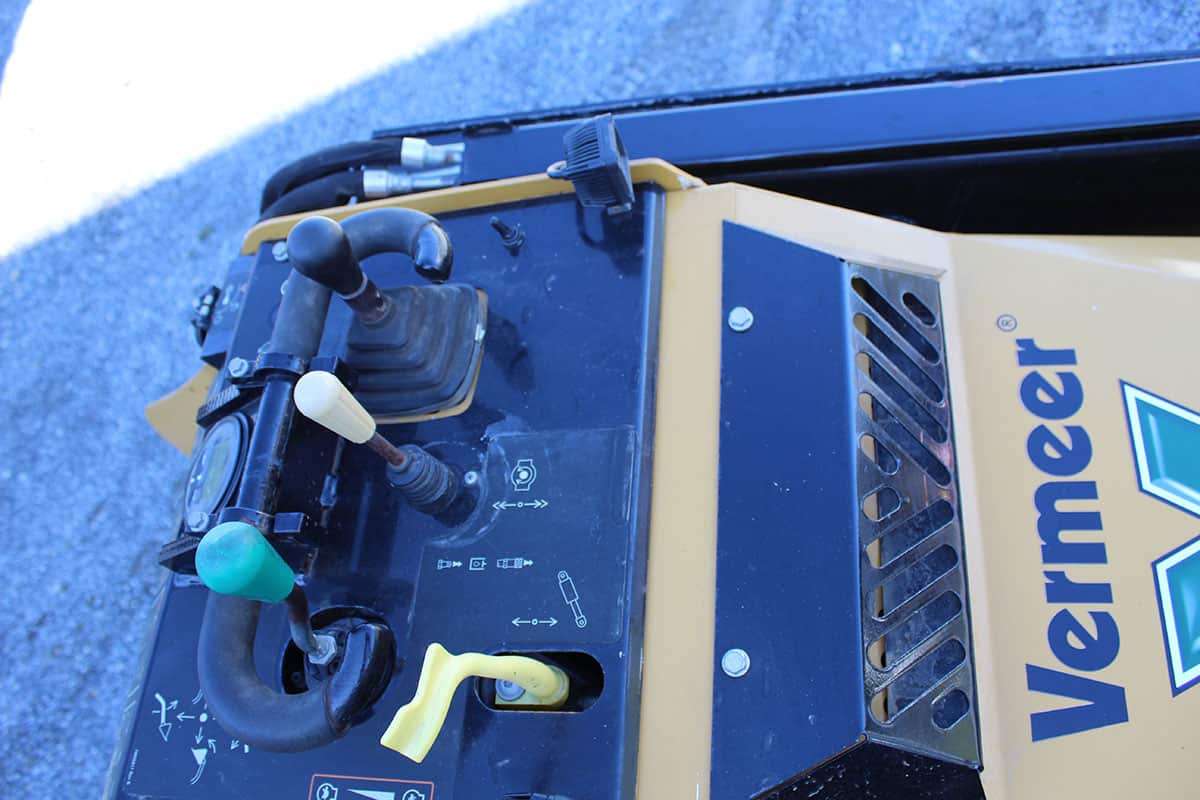

Manufacturer information describes a dual-axis pilot-operated joystick for steering along with integrated boom and bucket controls.

The platform also incorporates an operator-presence system intended to suspend ground drive and powered boom or bucket movement when the operator steps away from the operating position.

A stand-on platform can be advantageous for jobs where an operator repeatedly gets on and off the machine, such as landscaping, fencing, tree work, material placement, and site cleanup.

Optional Grapple and Forks

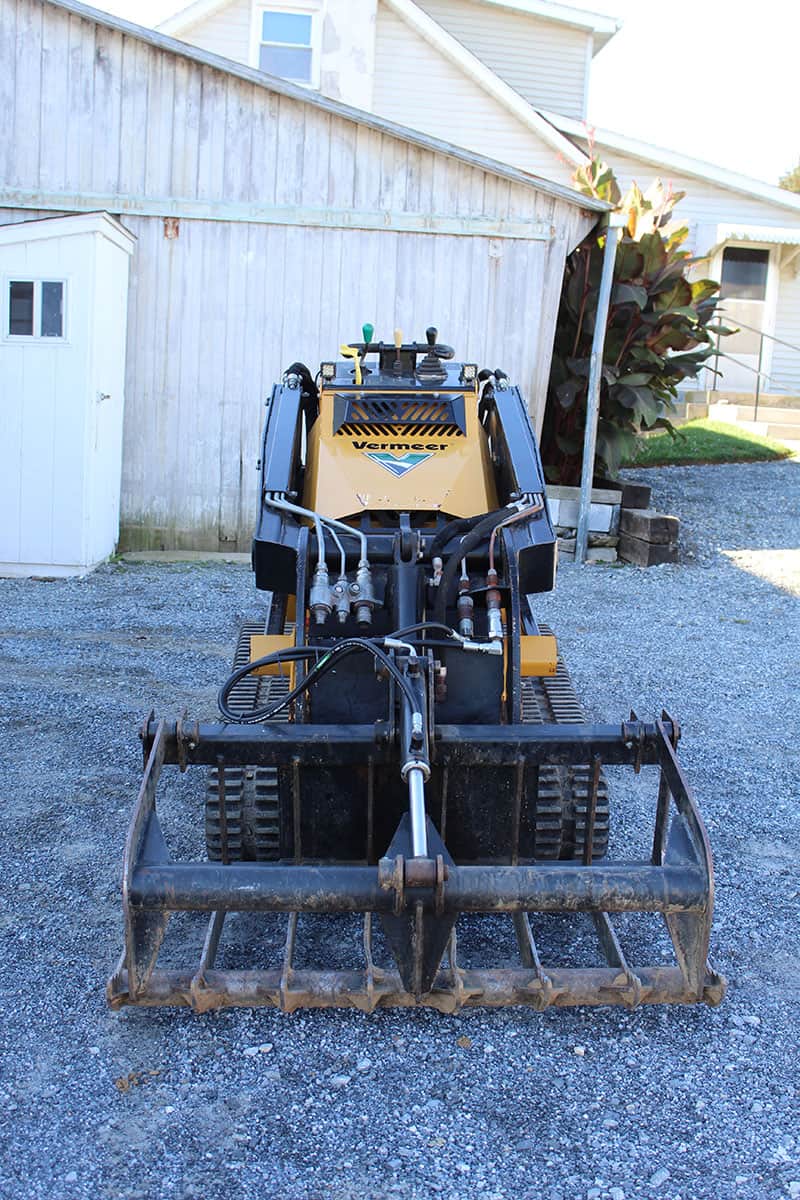

The seller reports that a grapple and pallet forks are available as optional attachments.

These attachments can significantly broaden the machine's usefulness.

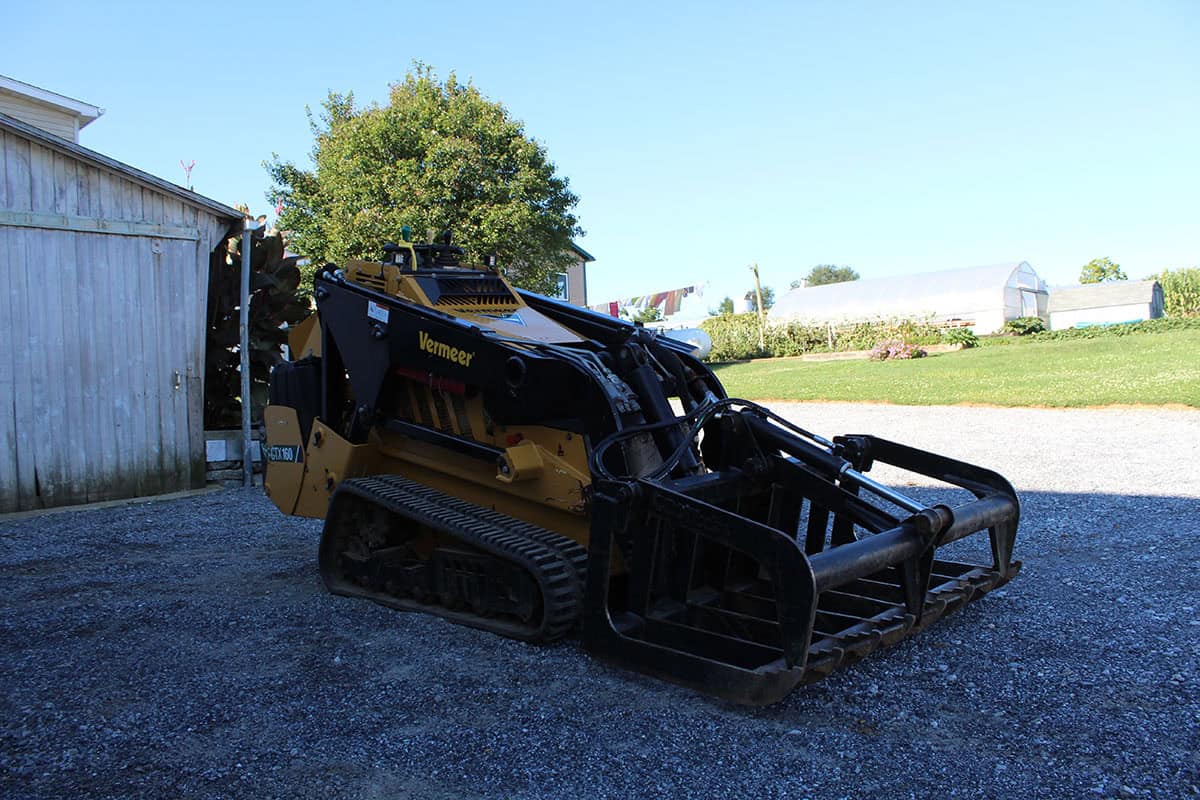

Grapple

A properly matched grapple can be useful for:

• Logs and limbs
• Brush removal
• Storm cleanup
• Construction debris
• Rocks
• Landscaping material
• Farm cleanup

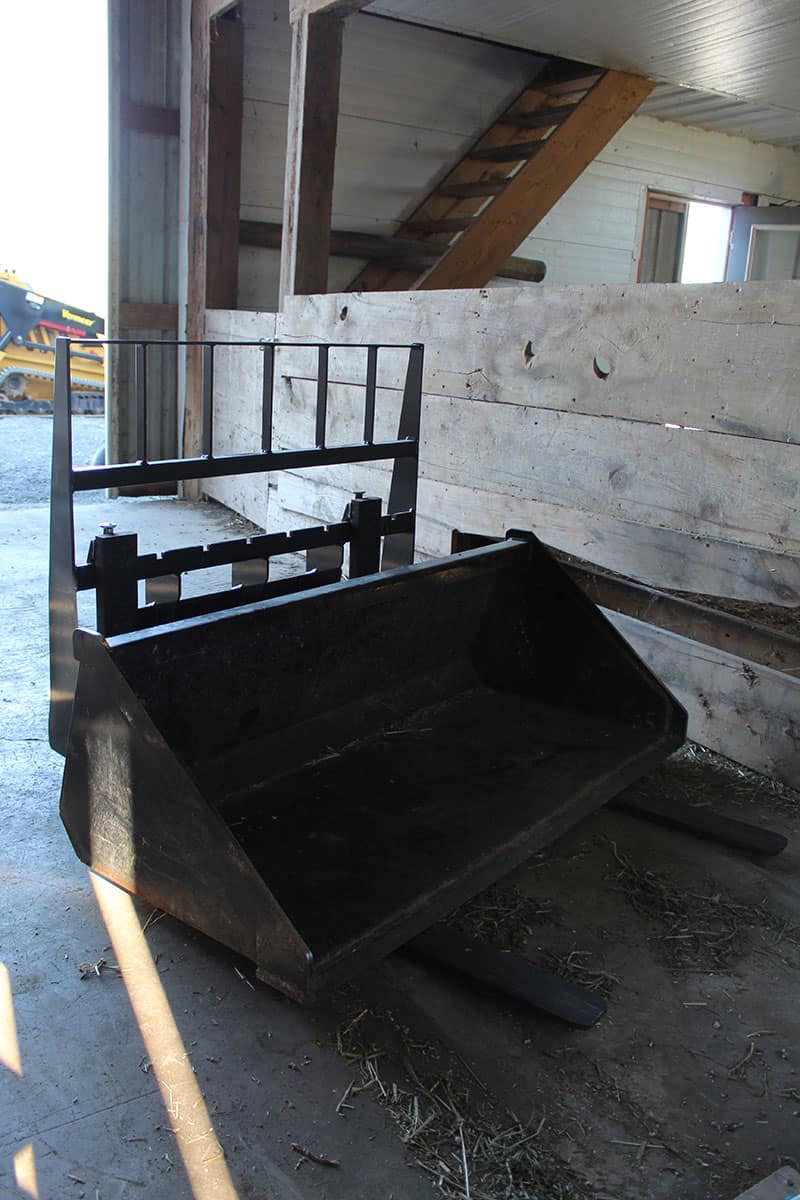

Pallet Forks

Forks can add capability for:

• Pallets
• Lumber
• Building materials
• Feed
• Nursery products
• Equipment and supplies
• Jobsite material handling

The grapple and forks should be treated as optional equipment rather than included in the $35,000 asking price unless otherwise confirmed by the seller.

Contact Trustworthy Equipment for attachment availability and pricing.

Low Reported Hours

The seller reports 765 operating hours on this 2021 Vermeer CTX160.

Hours are an important consideration on any used compact loader because usage can influence undercarriage wear, hydraulic condition, pins and bushings, attachment plate wear, and general machine condition.

Prospective buyers are encouraged to review the machine in person and verify the hour meter, current track condition, hydraulic operation, attachment plate condition, and overall mechanical condition before purchase.

Size and Transport Considerations

Published Vermeer dimensions place the CTX160 at approximately:

• 92.5 inches long without a standard bucket
• Approximately 116 inches long with a standard bucket
• Approximately 42 inches wide with 9-inch tracks
• Approximately 59 inches high

Published weight varies somewhat by production literature and configuration, but CTX160 specifications generally place the machine at approximately 4,000–4,120 lb depending on bucket and configuration.

Attachments will increase transport dimensions and total weight.

Actual loaded dimensions and weight should be verified before transportation.

Nationwide transportation assistance may be available through independent transportation providers.

Who Should Consider This CTX160?

This machine may be a strong fit for:

• Landscapers
• Hardscape contractors
• Tree-service companies
• General contractors
• Excavation contractors
• Property-maintenance companies
• Farms
• Nurseries
• Rental operations
• Utility contractors
• Acreage owners

The combination of 765 reported hours, 40-horsepower diesel power, 1,600 lb rated operating capacity, compact dimensions, rubber tracks, and optional grapple and forks creates a versatile package for buyers looking for substantial capability from a stand-on loader.

Price and Location

This 2021 Vermeer CTX160 mini skid steer is located in Ronks, Pennsylvania and is currently offered at:

$35,000

The seller also has a grapple and pallet forks available optionally.

Contact Trustworthy Equipment LLC for current availability, additional information, attachment pricing, photographs, or help arranging an inspection.

Trustworthy Equipment LLC is marketing this unit on behalf of the seller and can help connect qualified buyers with the appropriate party.

Financing assistance may be available to qualified buyers through independent financing providers. Approval, rates, terms, and conditions are determined by the financing provider.

Nationwide transportation assistance may also be available through independent transportation providers.

Buyers are encouraged to independently inspect the machine and verify specifications important to their intended use before purchase.
