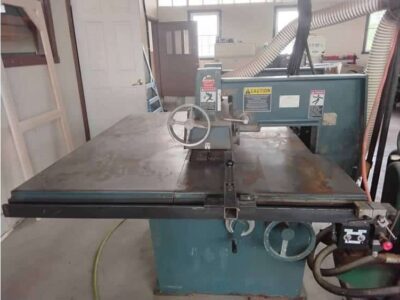

The Diehl SL52 Straight-Line Rip Saw for sale is a high-performance industrial woodworking machine designed for precision ripping, glue-line accuracy, and high-volume production. Built with a heavy-duty cast iron frame and powered by a robust arbor motor, the SL52 delivers consistent, straight cuts through hardwoods and softwoods alike.
This straight-line rip saw is equipped with hydraulic feed motors and a variable-speed chain drive system, allowing operators to fine-tune feed rates from 65 to 200 feet per minute for optimal cutting performance. With a maximum cutting thickness of approximately 4-1/4 inches and a 25-inch throat depth, the Diehl SL52 is ideal for flooring mills, cabinet shops, and industrial lumber processing operations.
If you’re looking for a reliable straight-line rip saw for glue-line ripping, dimension lumber processing, or high-production woodworking, this Diehl SL52 offers durability, precision, and efficiency in one proven machine.
SOLD
✅ Like-new feed chain installed
✅ Hydraulic feed system maintained and operating smoothly
✅ Machine cleaned and kept in production-ready condition
✅ Regular upkeep consistent with industrial shop use
This Diehl SL52 Straight-Line Rip Saw comes from a working woodworking environment where equipment was maintained for performance and reliability. The machine has been kept in clean operating condition and is ready to go directly into production.
It’s being offered as part of a shop adjustment, providing an opportunity for the next owner to acquire a proven industrial rip saw without the cost of new equipment.
The Diehl SL52 Straight-Line Rip Saw is engineered for shops that demand accuracy, speed, and long-term dependability. Known for its rugged construction and consistent performance, this machine is ideal for glue-line ripping, flooring stock preparation, and dimension lumber processing.
Built on a heavy cast iron base with a wet lubrication system, the SL52 minimizes vibration and maximizes cutting precision. The powerful arbor motor and large 18-inch blade capacity allow it to handle both hardwoods and softwoods with ease.
The variable-speed feed system, powered by hydraulic motors and a heavy-duty chain drive, ensures smooth material handling and consistent throughput across a wide range of applications.
Whether you're operating a high-production mill or a specialized woodworking shop, this machine delivers the reliability and performance Diehl equipment is known for.
Specifications are believed to be accurate but are not guaranteed and may vary by unit. Buyers should independently verify all specifications, features, and condition prior to purchase.
Manufacturer: Diehl
Model: SL52 Straight-Line Rip Saw
Machine Type: Straight-Line Rip Saw
Maximum Stock Thickness: Approx. 4-1/4 inches
Blade Diameter: 18 inches
Throat Depth: Approx. 25 inches (one side of blade)
Arbor Motor: Approx. 15 HP
Arbor Speed: ~3,450 RPM
Feed System: Hydraulic drive with variable speed
Feed Speed Range: Approx. 65 – 200 feet per minute
Feed Drive: Heavy-duty chain feed
Construction: Cast iron base
Lubrication System: Wet lubrication design
